DIGGA

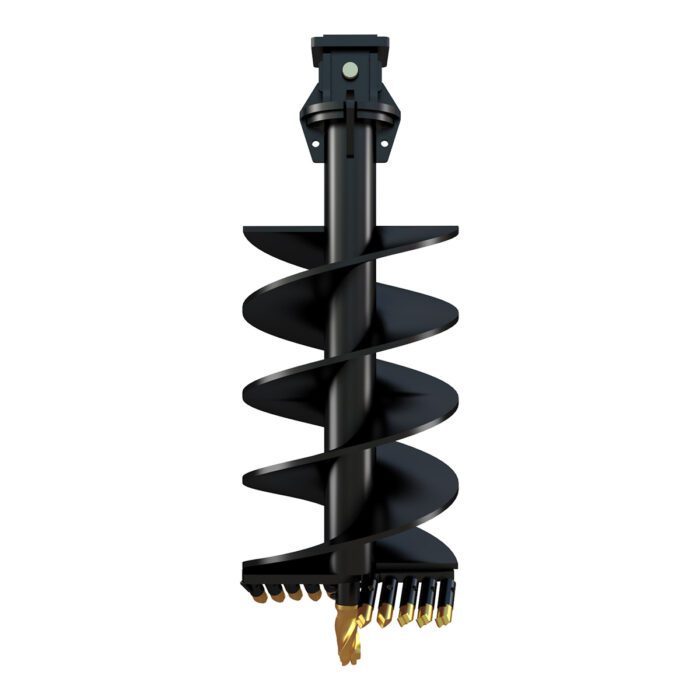

RC11 Rock/Combo Auger
$1,991.00 – $8,294.00
Includes GST
Key Features
This auger is suitable for a 20T – 30T machine
Tungsten Taperloc Teeth, are designed for drilling in earth, shale, asphalt, permafrost and fracturable rock.
The ultimate all-performance auger.
No need to have two augers for different conditions. Ideal in all drilling conditions. Cut a clean clear hole in soft earth and clay and have the ultimate ripping ability in fracturable rock.
• True cut design ensures a 300mm auger drills a 300mm hole
• Drive adaptors & extensions to maximise drilling depth
• Shallow pitch flights for optimum removal of spoil
• Robust auger body construction for long life
• Heavy duty tube with highest grade steel
• Variety of hub options
See Table below for full specifications.
Specifications RC4 - RC11
| DESCRIPTION / MODEL | RC4 | RC6 | RC8 | RC10 | RC11 | |
|---|---|---|---|---|---|---|
| Machine Weight | 750kg – 4.5T | 4.5T – 10T | 10T-20T | 20T-30T | 20T-30T | |
| Drilling Conditions | Combo Rock/Earth | Combo Rock/Earth | Combo Rock/Earth | Combo Rock/Earth | Combo Heavy Duty Rock/Earth | |
| Hub | 65mm Round | 75mm Square | 75mm Square | 100mm Square | 100mm Square | |
| Optional Hub | 50.8mm Round | 57mm Square | 100mm Square | 75mm Square | 75mm Square | |
| 57mm Square | ||||||
| 75mm Square | ||||||
| Overall Length | 1200mm | 1500mm | 1500mm | 1500mm | 1500mm | |
| Flights (Lead) | 8mm | 8mm | 10mm | 16mm | 16mm | |
| Flights (Carry) | 8mm | 8mm | 10mm | 16mm | 16mm | |
| Teeth | TTS/TTD | TT | TT | TTD | TTL | |
| Pilot | PM-HX-3 | PH-3 | PH-3 | PH-3 | PH-3XL | |
| Ideal Drives | PDD-PD4 | PD4-PD10HF | PD12-25 | PD22-PD50 | PD25-PD50 | |
| OPTIMUM DRILLING SPEEDS (RPM) | ||||||
| Earth | 55-65 | 55-65 | 55-65 | 55-65 | 55-65 | |
| Clay | 45-55 | 45-55 | 45-55 | 45-55 | 45-55 | |
| Shale (Fracturable Rock) | 25-45 | 25-45 | 25-45 | 25-45 | 25-45 | |
| Heavy Rock | – | – | – | 10-25 | 10-25 | |
| Auger Features | Double flight configuration. Heavy duty body for greater strength with larger machines provide for optimum drilling on mid sized machines. | Double flight configuration. Upgraded flight thickness for greater durability & performance with larger machines. | ||||
The above specifications are subject to change without prior notice.
